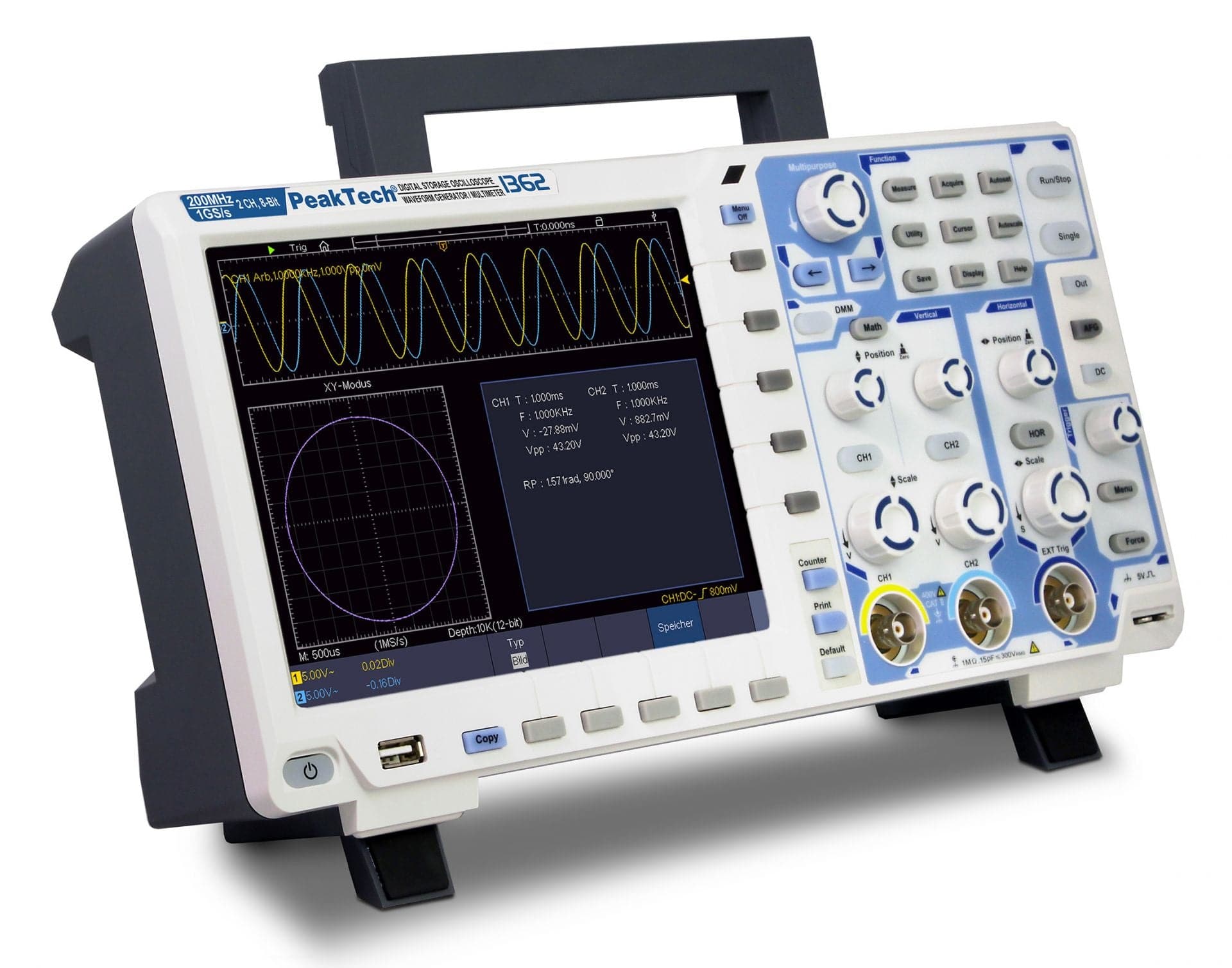

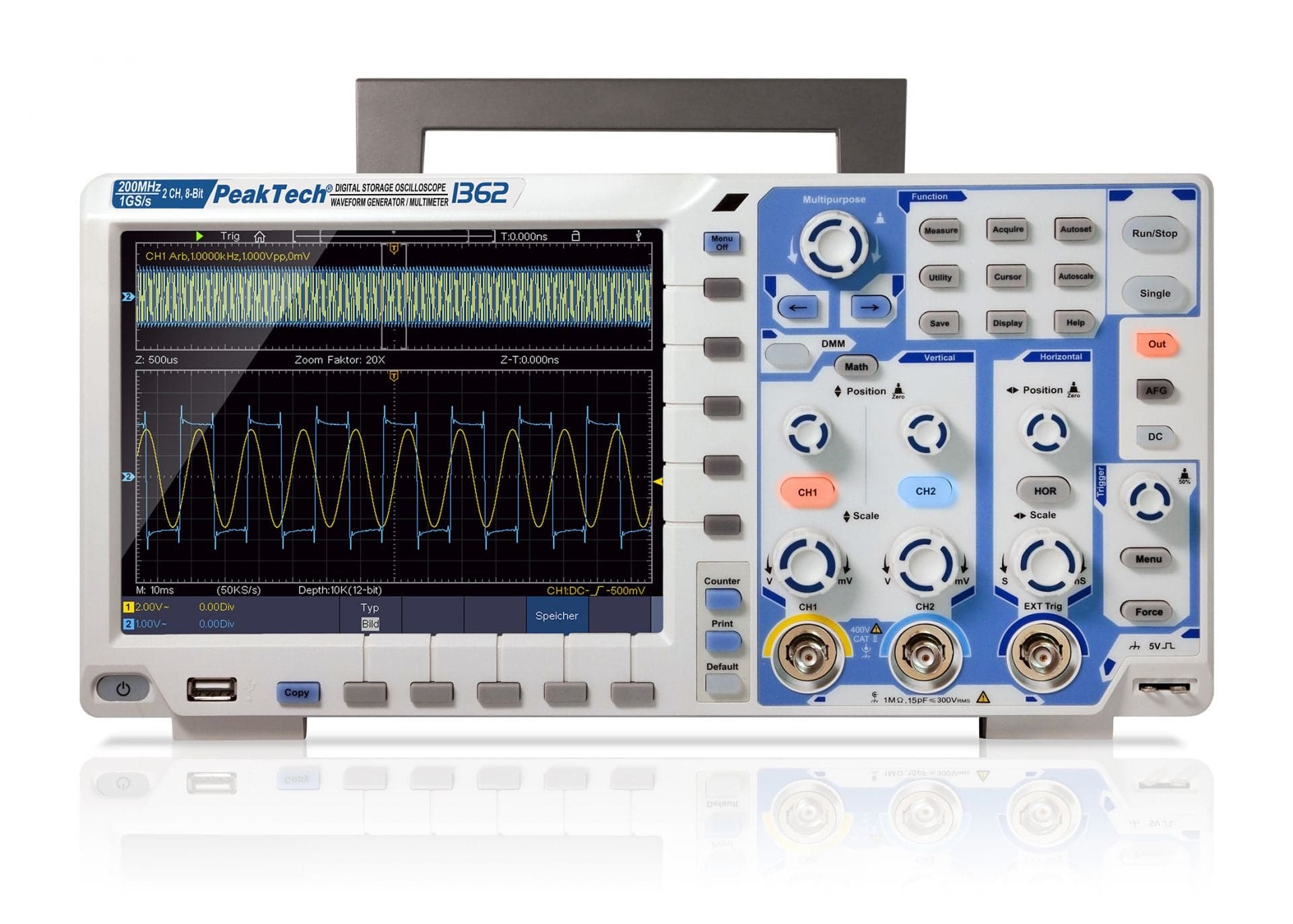

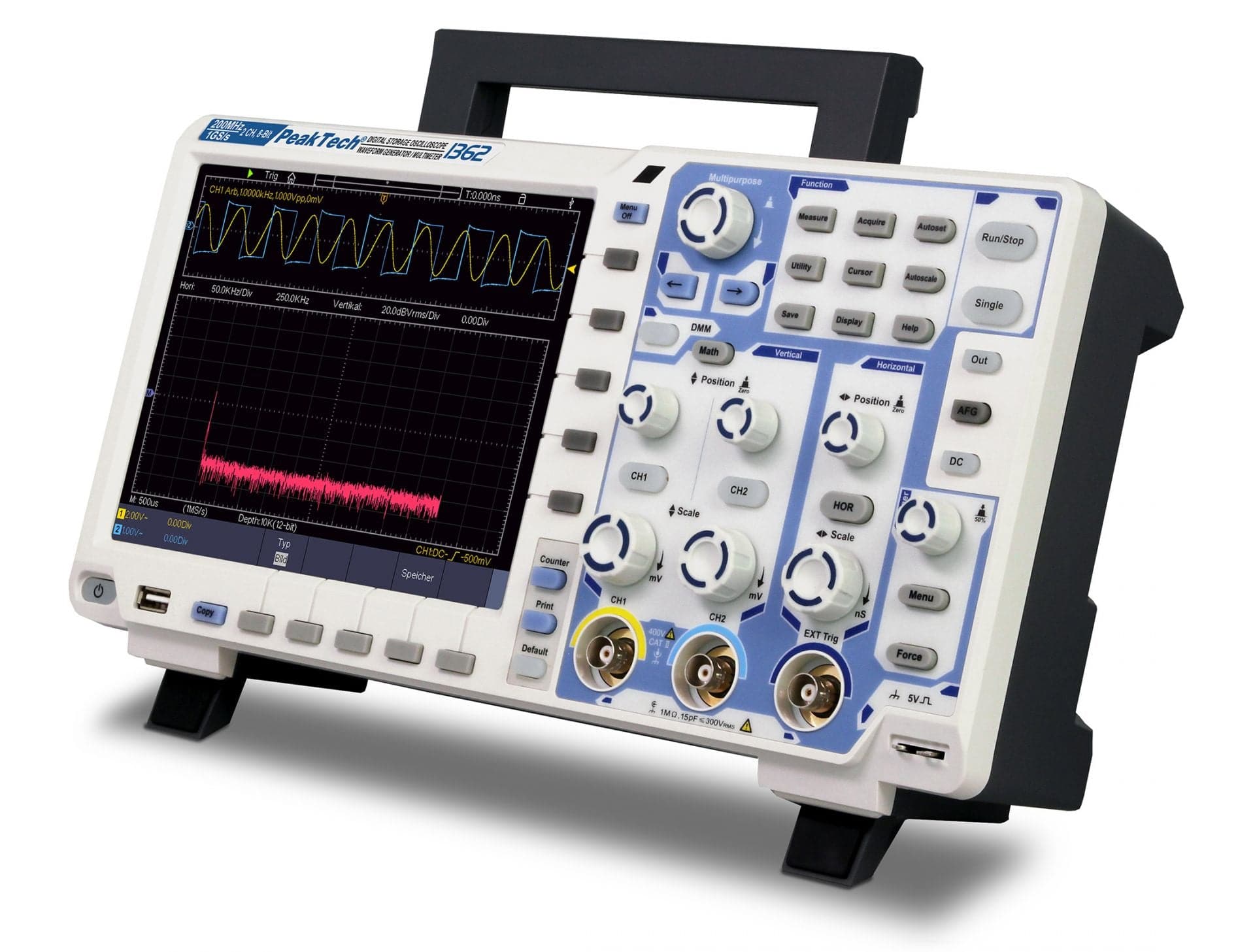

200 MHz / 2 CH ~ 2 GS/s ~ digital storage oscilloscope
The PeakTech 1362 is a 200 MHz 2-channel digital storage oscilloscope of the latest generation with a high-resolution TFT touch screen and comprehensive additional functions. It has a sampling rate of up to 2 GS/s and convinces with its high quality and easy handling with the best price/performance ratio. The many functions can be controlled with the tried-and-tested function keys and rotary controls or via a comfortable touchscreen operation. For example, the menus displayed on the screen, the time base, the sensitivity or the active signal line can be selected. The zoom function or file management with the keyboard field displayed can also be operated via the touchscreen. For a quick display of any incoming waveform, just press the Autoset button, the oscilloscope itself is already looking for the best possible display. With Autoscale, on the other hand, the scaling of the time base can be adjusted in a user-friendly way.
Spezifikationen:
| Bandwidth: | 200MHz |
|---|---|
| Channels: | 2 CH |
| Sample 1 CH: | 2GS/s |
| Sampling 2CH: | 1GS/s |
| usb: | ■ |
| rise time: | < 1.75ns |
| Display type: | Touchscreen TFT |
| Resolution: | 800x600 pixels |
| Screen size (TFT): | 20cm (8") |
| Hor. scale max.: | 1000 s/div |
| Hor. scale min.: | 1ns/div |
| LAN: | ■ |
| memory depth: | 40,000,000 points |
| vert. Resolution: | 8 bits |
| vert. Scale max.: | 10V/div |
| vert. scale min.: | 1mV/div |
| Wifi: | ■ |
| Battery/Battery: | LiPo 13200mAh (optional) |
| Integrated AWG: | ■ |
| Integrated DMM: | ■ |
| Mains voltage: | 110/240VAC; 50/60Hz |
Technische Merkmale:
- 2-channel oscilloscope with 200 MHz analog bandwidth at max. 2 GS/s sampling rate
- 20 cm (8") TFT touchscreen for user-friendly operation
- Built-in 25MHz/1CH Arbitrary Waveform Generator
- Integrated digital multimeter with 4000 counts
- WiFi, LAN, USB host & USB device
- CAN bus, RS-232, I2C, SPI decoder with event table
- Recording length of max. 40 million points
- Optionally available battery: model "Battery 6"
- Safety: EN 61010-1; CAT II 400V

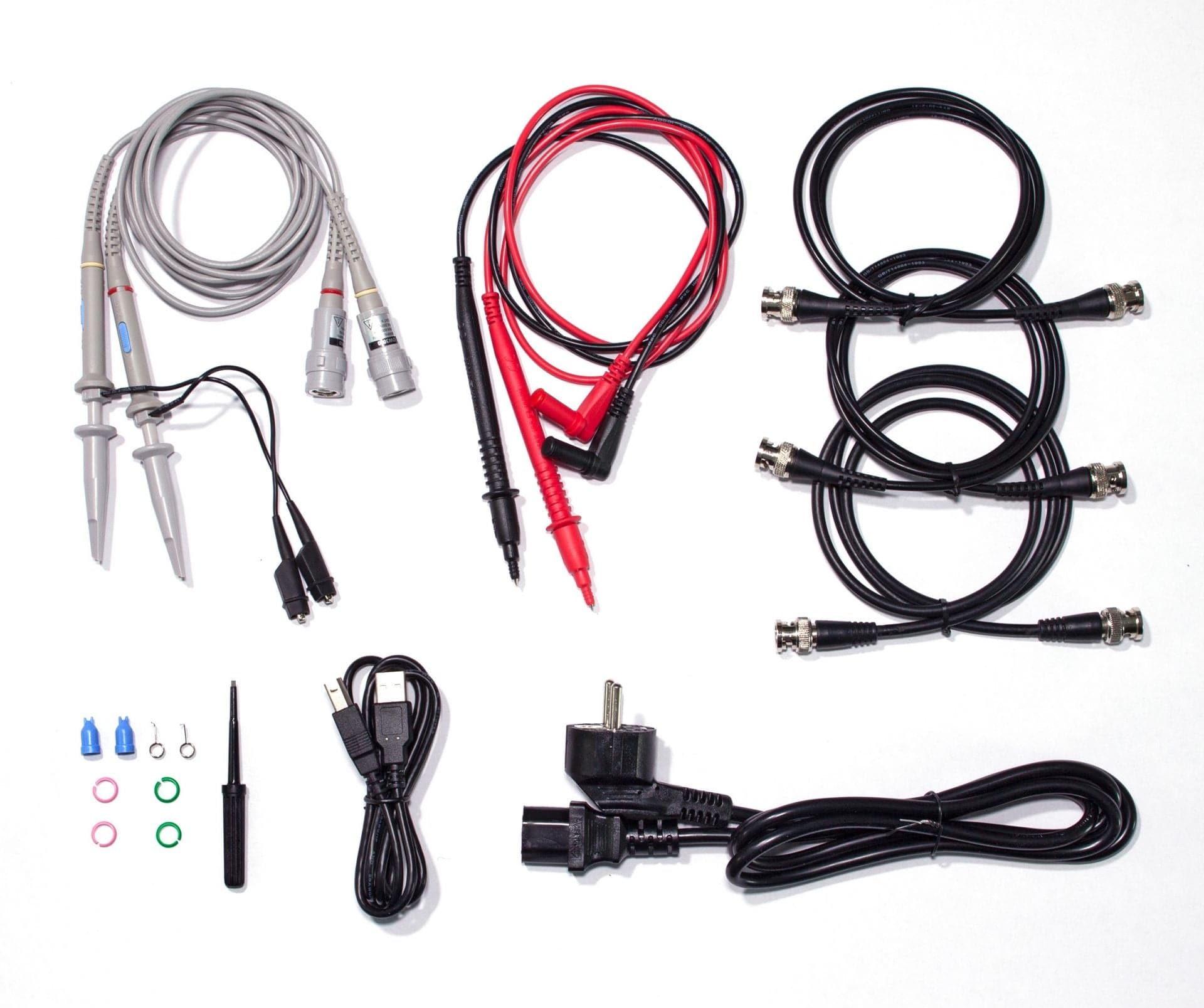

- Accessories: USB cable, software CD for Windows, power cable, 2 probes, BNC cable, carrying case and user manual
